Indicators for the application of floor and bench scales
Model: COMBICS (CAIS1 / CAIS2 / CAIS3)
Origin: Minebea-intec / Germany
* CAIS1: COMBICS 1 weighing head, 20mm high backlit LCD screen, RS232 interface, connected via 25-pin D-SUB port, stainless steel construction material, IP69K protection standard.
* CAIS2: COMBICS 2 weighing head with selectable application program, 20 mm LCD backlit display. LED status indicator, integrated for checkweighing (red-green-yellow).
RS232 data interface as standard, adopts 25 pin D-SUB connector.
Port for barcode reader.
Applications: weighing, counting, checkweighing, grading (3 or 5 grades), total, net total, animal weighing, averaging, percent balance, neutral measurement. Material constructed of stainless steel, IP69K protection standard.
Can connect with 2 scales (analog or digital)

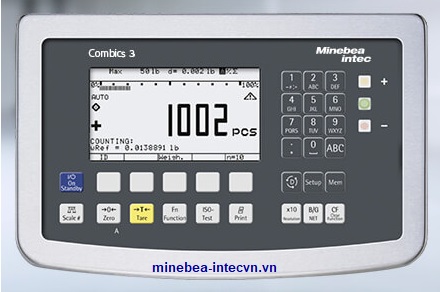

* CAIS3: COMBICS 3 weighing head with selectable application program, 20 mm LCD backlight display.
LED status indicator, integrated for checkweighing (red-green-yellow).
Two RS232 data interfaces as standard, via 25-pin D-SUB connector.
Port for barcode reader.
Applications: weighing, counting, checkweighing, grading (3 or 5 grades), total, net total, animal weighing, averaging, percent balance, neutral measurement.
Material constructed of stainless steel, IP69K protection standard.
Can connect with 3 scales (max 2 analog or digital)
Multiple output options: RS232, RS485, RS422, Digital 5 input / 5 output, analog output (0 / 4--20mA; 0--10V; 16 bit), Profibus DP module, Ethernet TCP / IP (not ethernet IP) and Modbus TCP interface (RJ45 connector).
IP69K makes the scale head dust-proof, waterproof; water (steam) resistance at high temperature, high pressure; perfectly. Thanks to this feature, the COMBICS weighing head is a perfect solution for weighing in harsh environments ........
